- VISION app log:
- Connect your PC to the GCS tablet
- If the tablet storage does not appear on your PC, make sure that the USB is set to "transfer files" on the tablet (Settings > Connected devices > USB)
- Browse into folder "FZ-S1\Internal shared storage\Android\data\com.ageagle.ebee_vision\files\gcs_logs"

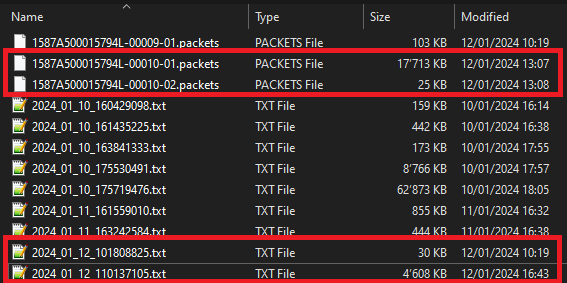

- Retrieve the packets files matching the flight ID and all the .txt files matching the flight date (for this example we are interested into flight ID 00010)
- Screenshots
VISION screenshot
Press the Power + volume down button on the SROC. Lock the Fn button to access the "Volum down" function when pressing F2.
- Drone log:
eBee VISION
- Either take the drone SD card, or power the drone and connect it to your PC over USB

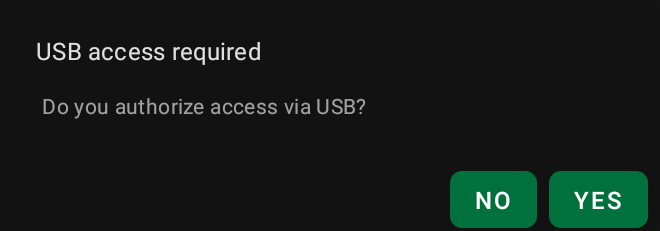

- If you encrypted your SD card, first connect your drone with the VISION app to allow for decryption:

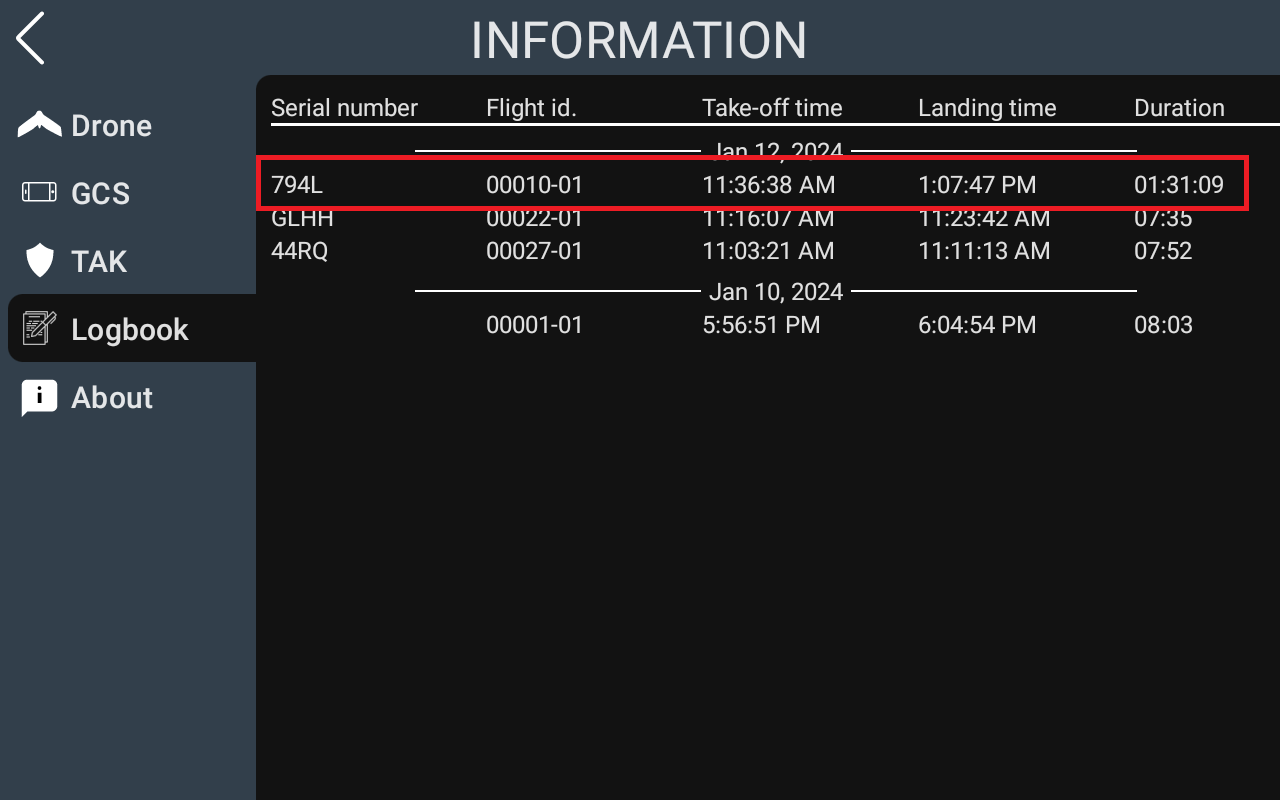

- If you are unsure which log number corresponds to the flight you would like to refer to, have a look at the logbook and identify the flight ID corresponding to your flight date (in this example, we are interested in flight 00010-01):
- On the drone storage, go into the FDR folder and look for the corresponding flight ID

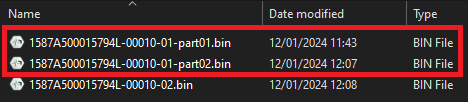

- Copy all `.bin` files sharing the same id prefix (in this example, all the files ending with 00010-*.bin
